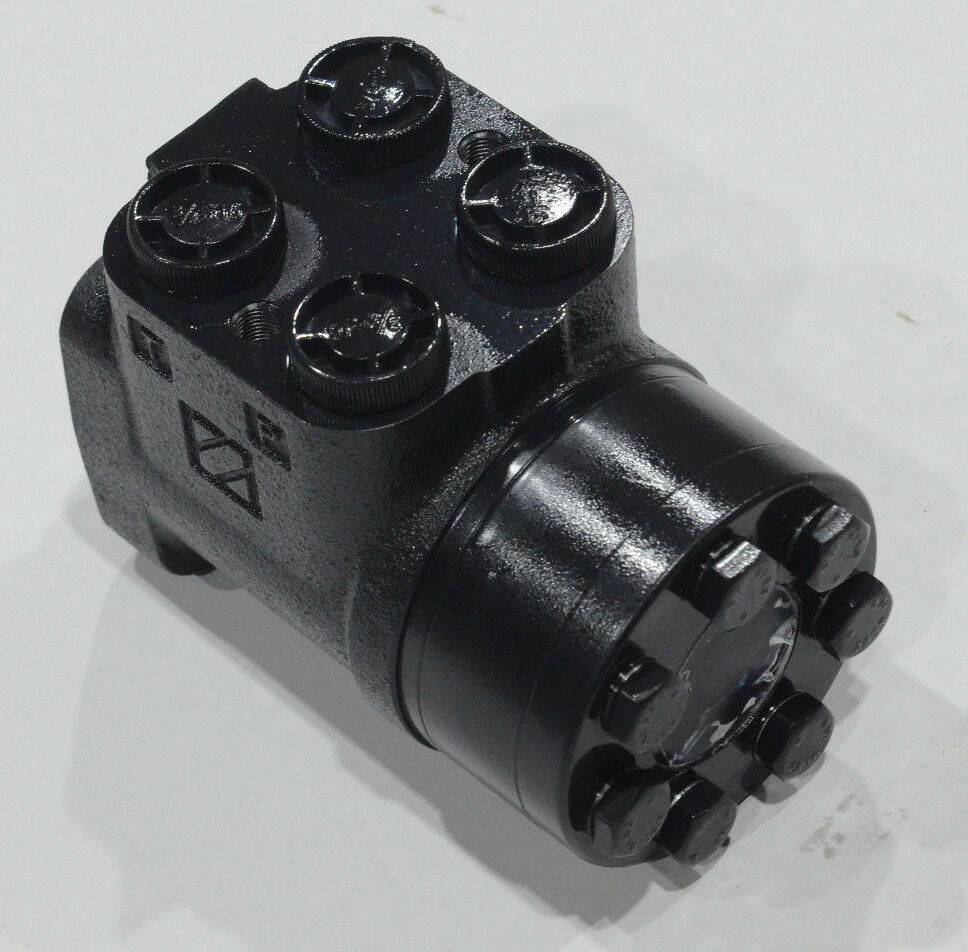

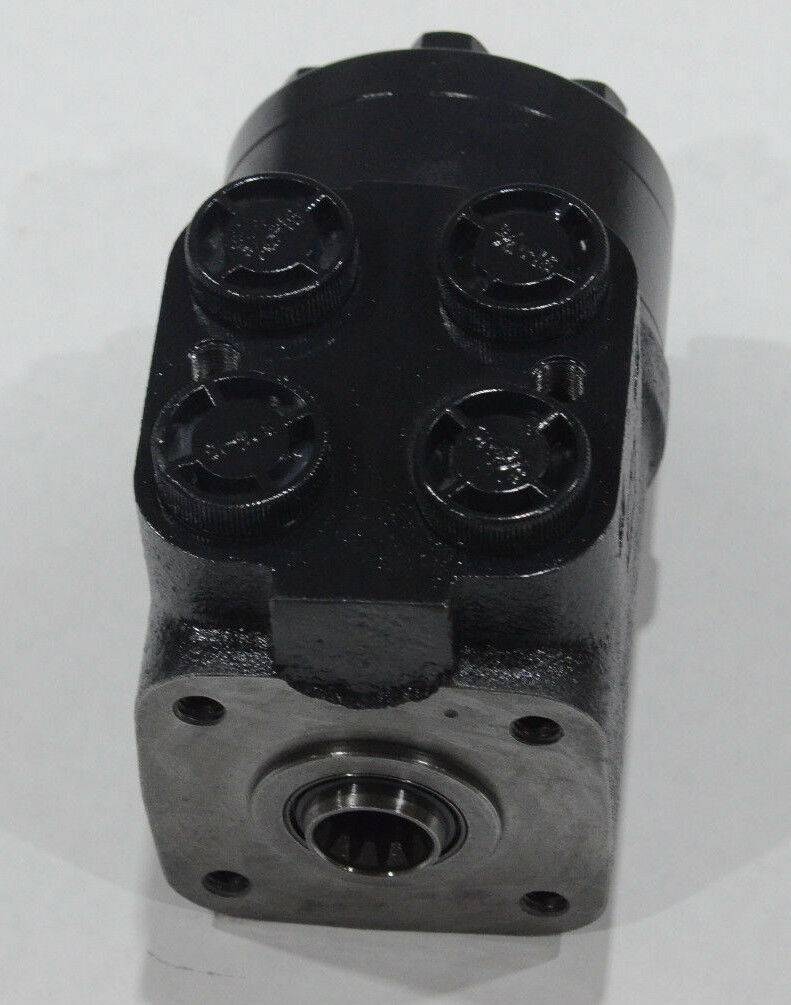

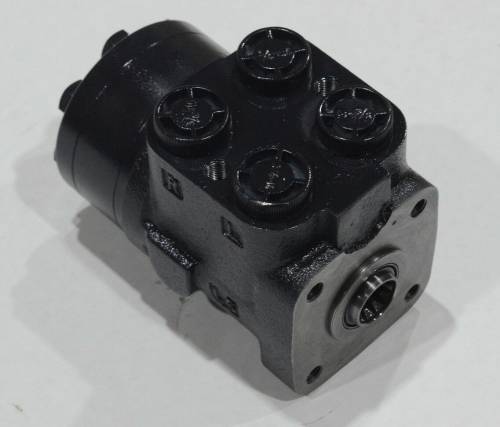

Replacement Eaton Char Lynn 211-1011-002 (or -001) Steering Unit
211-1011-002
Unit has the following specs:
200 cc displacement (12.08 cu. in.)
Open center oil flow
3/4"-16 O-ring ports
3/8"-16 column mtg. threads.
Std. 12 tooth involute splined input shaft (Same as Char Lynn and Danfoss)
Overall height of 6.375" from bottom to column mtg. face.
Manual steering check valve.
Non Load reaction cylinder circuit
Hyster 298342
200 cc displacement (12.08 cu. in.)
Open center oil flow
3/4"-16 O-ring ports
3/8"-16 column mtg. threads.
Std. 12 tooth involute splined input shaft (Same as Char Lynn and Danfoss)
Overall height of 6.375" from bottom to column mtg. face.
Manual steering check valve.
Non Load reaction cylinder circuit
Hyster 298342
Limited Supply: only 3 remaining
Pricing:
$375.00
Description
This is a non load reaction unit (wheels do not return to center without turning the steering wheel) and can be used with all cylinder types. If you have a single rod (unbalanced) cylinder this is the style you should buy, but it will also work in double rod/cylinder applications where a return to center effect and road feedback is not desired.
Details
- 211-1011-002
- 211-1011-002
- Farmland
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 15.0 lbs.
- W8.0000” x H8.0000” x L8.0000”
- Free Shipping!
