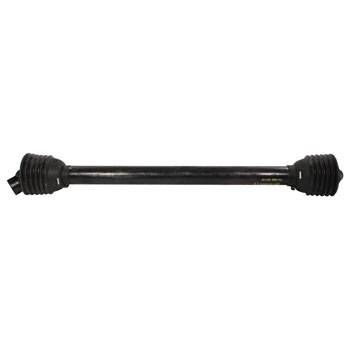

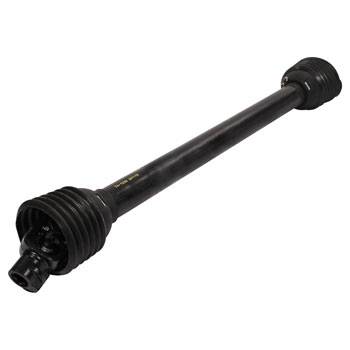

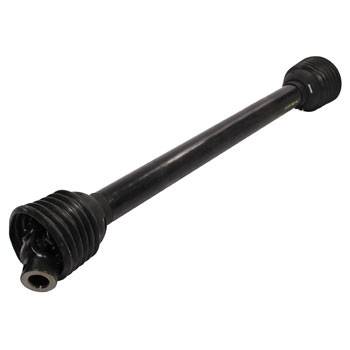

AB4111WY - ECONOMY DRIVELINE
AB4111WY
Economy Rotary Cutter
New 100 Series Economy Driveline. Driveline minimum C-to-C length: 41" (1035 mm), Maximum C-to-C length: 62" (1560 mm), Total collapsed length: 48" (1230 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" Round with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4. Driveline has 6 ft. lift / 3-pt. hitch. Fits King Kutter Finishing mowers and Rotary Cutters; Rhino and Woods Rotary Cutters.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Use a grade 2 shear bolt (A-RCSBKT). The use of a harder grade bolt will void the warranty.
New 100 Series Economy Driveline. Driveline minimum C-to-C length: 41" (1035 mm), Maximum C-to-C length: 62" (1560 mm), Total collapsed length: 48" (1230 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" Round with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4. Driveline has 6 ft. lift / 3-pt. hitch. Fits King Kutter Finishing mowers and Rotary Cutters; Rhino and Woods Rotary Cutters.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Use a grade 2 shear bolt (A-RCSBKT). The use of a harder grade bolt will void the warranty.
Pricing:
$278.40
Description

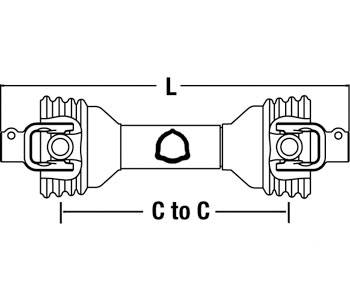

C to C Max: 1560 mm/ 62"
C to C Min: 1035 mm/ 41"
Category: 3 (35HP)
Implement: 1 3/8" RB 1/2" PH
Replaces: 88642, 92950
Series: 100
Size: 4
Total Collapsed Length: 1230 mm/ 48"
C to C Min: 1035 mm/ 41"
Category: 3 (35HP)
Implement: 1 3/8" RB 1/2" PH
Replaces: 88642, 92950
Series: 100
Size: 4
Total Collapsed Length: 1230 mm/ 48"
Details
- AB4111WY
- AB4111WY
- Farmland
- New
Categories
Shipping Information
- Item Requires Shipping
- 29.5 lbs.
- W62.0000” x H10.0000” x L41.0000”
- This item will require a special quote for shipping charges.
