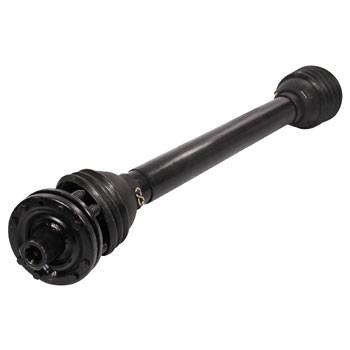

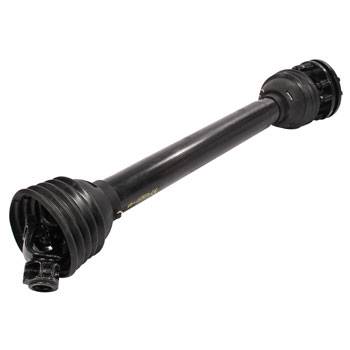

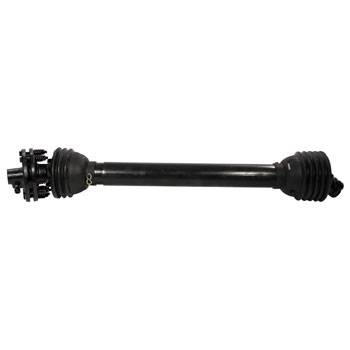

AB5091090 - DRIVELINE
AB5091090
W/ 7" Friction Clutch
100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1 friction clutch. Clutch diameter is 7.09" Fits Kodiak Rotary Cutters.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1 friction clutch. Clutch diameter is 7.09" Fits Kodiak Rotary Cutters.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Pricing:
$503.92
Description

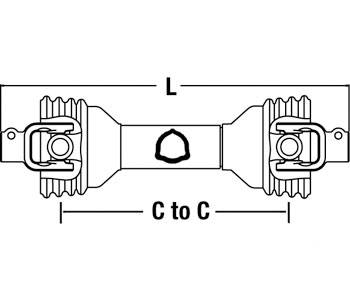

C to C Max: 1310 mm/ 52"
C to C Min: 885 mm/ 35"
Category: 4 (47HP)
Clutch Diameter: 7.09"
Implement: 1 3/8" - 6 SPL. FF1 FR.CL.
Replaces: 88609
Series: 100
Size: 5
Total Collapsed Length: 1140 mm/ 45"
Tractor: 1 3/8" -6
Type: Pull/Towed
C to C Min: 885 mm/ 35"
Category: 4 (47HP)
Clutch Diameter: 7.09"
Implement: 1 3/8" - 6 SPL. FF1 FR.CL.
Replaces: 88609
Series: 100
Size: 5
Total Collapsed Length: 1140 mm/ 45"
Tractor: 1 3/8" -6
Type: Pull/Towed
Details
- AB5091090
- AB5091090
- Farmland
- New
Categories
Shipping Information
- Item Requires Shipping
- 47.9 lbs.
- W52.0000” x H35.0000” x L10.0000”
- This item will require a special quote for shipping charges.
