AB4111WY138 - DRIVELINE
AB4111WY138
W/ 1 3/8" 6 Spline QD Yokes
Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 41" (1035 mm), Maximum C-to-C Length: 62" (1560 mm), Total Collapsed Length: 48" (1230 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline. Series: 100. Category 3 (35 hp). Replaces: 65628. Fits Bondioli & Pavesi, King Kutter, and Kubota.
NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 41" (1035 mm), Maximum C-to-C Length: 62" (1560 mm), Total Collapsed Length: 48" (1230 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline. Series: 100. Category 3 (35 hp). Replaces: 65628. Fits Bondioli & Pavesi, King Kutter, and Kubota.
NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Pricing:
$293.57
Description

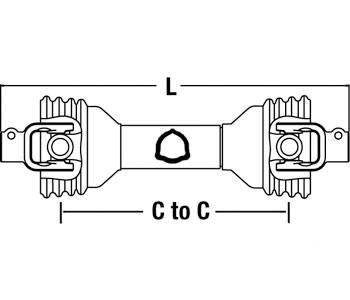

C to C Max: 1560 mm/ 62"
C to C Min: 1035 mm/ 41"
Category: 3 (35HP)
Implement: 1 3/8" -6
Replaces: 65628
Series: 100
Size: 4
Total Collapsed Length: 1230 mm/ 48"
Tractor: 1 3/8" -6
C to C Min: 1035 mm/ 41"
Category: 3 (35HP)
Implement: 1 3/8" -6
Replaces: 65628
Series: 100
Size: 4
Total Collapsed Length: 1230 mm/ 48"
Tractor: 1 3/8" -6
Details
- AB4111WY138
- AB4111WY138
- Farmland
- New
Categories
Shipping Information
- Item Requires Shipping
- 27.4 lbs.
- W62.0000” x H41.0000” x L10.0000”
- This item will require a special quote for shipping charges.
