503-1303 - For John Deere 10PA17C COMPRESSOR w/SINGLE GROOVE CLUTCH

(0) Reviews: Write first review
503-1303

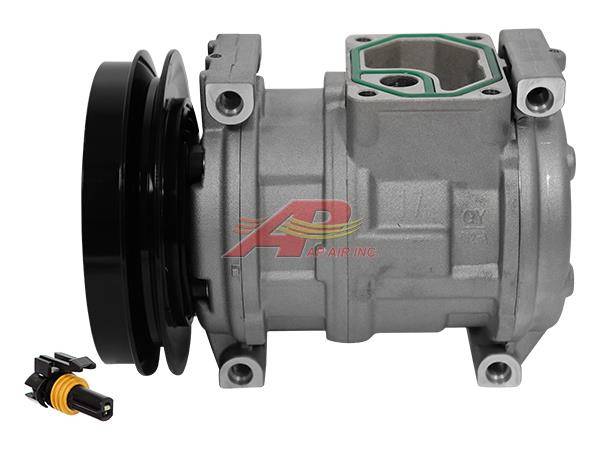

New Denso Aftermarket Version 10PA17C Compressor With Single Groove Clutch
Must Use Original Manifold
Can Use Original Denso 503-130

COMPRESSOR TYPE: 10PA17C
HEAD TYPE: N/A
OIL TYPE: R134 Pag Oil
CLUTCH DIAMETER: 5.748", 146mm
VOLTAGE: 12
GROOVES: 1
BELT WIDTH: 1/2"
OIL QUANTITY: 230cc, 7.77oz.
GAUGE LINE: 36 mm, 1.41"
Pricing: $321.43
Qty:

Description

Replaces OEM#: RE55422, TY6784, 447100-3831, 447200-3081, 447200-3350

Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - .930"

540E: Serial Number 542089 and Above
548G-II, 540G, 540G-II, 640G: Serial Number 558204 and Below
744K: Serial Number 632967 and Below
300D, 310D, 315D, 410D, 510D, 710D, 640G-III, 560D, 648G-III, 640G-III, 648G-III, 748G-III: erial Number 816286 and Below
410E: Serial Number 830204 and Below
670G, 670GP, 672G, 672GP, 770G, 770GP: 6090HDW01 Engine
4555: Later Models
6500: Serial Number 002001 and Above
4760: Serial Number 003365 and Above
4560: Serial Number 003583 and Above
4960: Serial Number 005730 and Above
4955: Serial Number 010371 and Above
4755: Serial Number 010679 and Above
1710D: Serial Number 1000 and Below
7445: Serial Number 16001 and Above
9965: Serial Number 2001 and Above
644G Wheel: Serial Number 542069 to 557738
824K: Serial Number 641969 and Below with 6135HDW01 and 6135HDW03 Engines
3430, 3830: Serial Number 985001 and Above, Late Style Direct Mount Compressor
640E, 740E: Serial Number 542089 and Above

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 24.3 lbs.
  • W10.0000” x H15.0000” x L10.0000”
