RP998 - Case/IH INFRAME KIT

(0) Reviews: Write first review
RP998

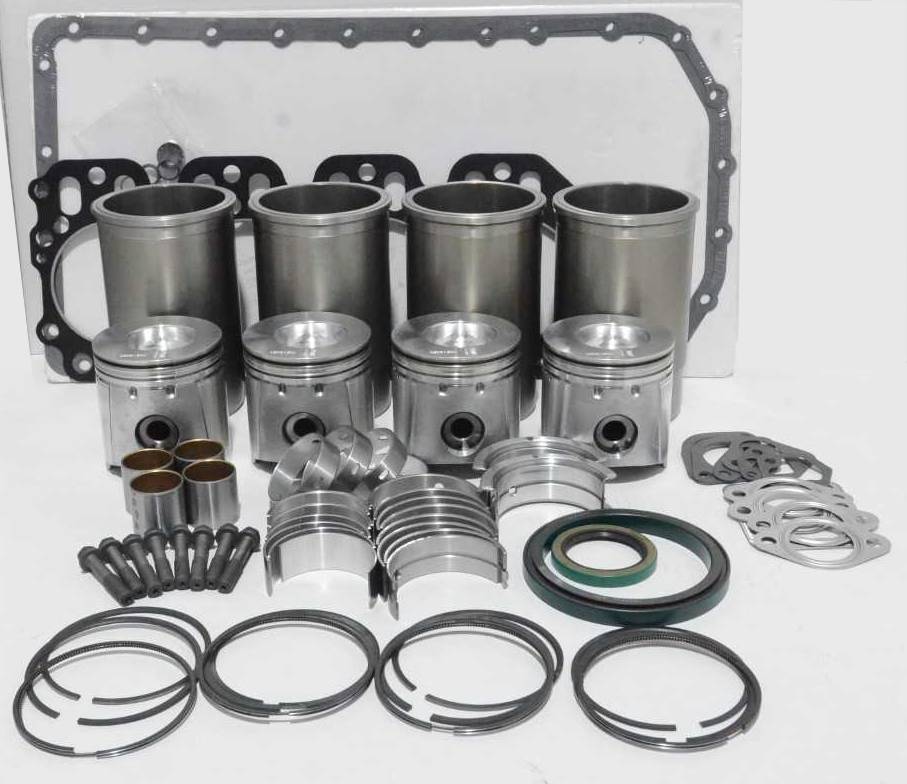

Includes:
1-Main Bearing Set
1-Oil Pan Gasket
4-Rod Bearing Pairs
4-Cylinder Kits
(Sleeves, Pistons, Wrist pins and keepers, Rings and O-rings)
1-Head Gasket Set
Shipping: Free shipping applies to continental US only.
Pricing: $625.00

Customize Your Item

- Main Bearings -
- Rod Bearings -
Qty:
Free Shipping!

Description

188 G188D 3.1L Diesel L4, after ESN 2656844

Wide flange liners, 4.537" liner flange OD

Early Model - Before Serial No. 2656843 uses a 4.458" Sleeve Flange Diameter (Small Flange)
Late Model - After Ser No. 2656844 uses a 4.537" Sleeve Flange Diameter (Large Flange)

Please Note: It is common to have an engine in the early serial number break that has had the block bored to accept the larger sleeve. For this particular application, We always ask our customers to measure their cylinder sleeve flange's outer diameter.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 70.0 lbs.
  • W30.0000” x H10.0000” x L20.0000”
  • Free Shipping!
  • Free shipping applies to continental US only.
